Vacuum Drying Ovens

Vacuum Drying Ovens

Introduction

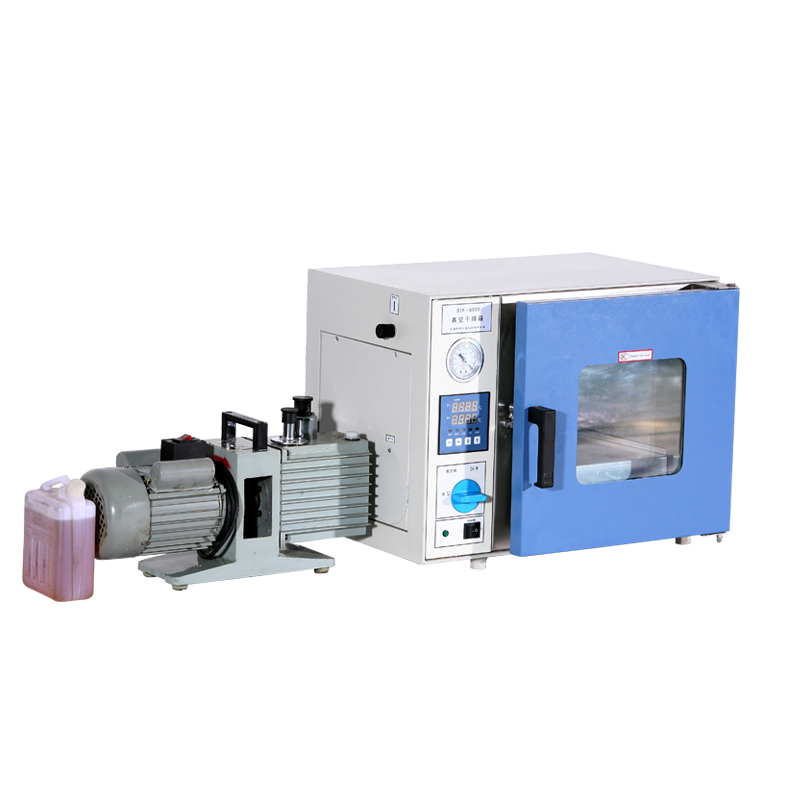

Vacuum Drying Ovens,vacuum oven is specially designed for drying heat-sensitive, easy to decompose and easy to oxidize substances, which can be filled with inert gas to the interior, especially some items with complex composition can also be dried quickly. Widely used in electronics and chemical industry.


E-mail

ysl@bjyashilin.com



Inquire Now     Get A Quote
Product Parameter
Model Studio Size  (D*W*H)mm Dimension(D*W*H)mm power
DZF-6020 300×300×275 605×490×450 450W
DZF-6050 415×370×345 710×560×550 1450W
DZF-6090 450×450×450 610×660×1400 1400W
DZF-6210 560×600×640 720×820×1750 2200W
temperature range RT+10℃~200℃
Temperature resolution ±0.1℃
Thermostatic fluctuation ±1℃
Vacuum level achieved 133Pa
timing range 1-9999M
Outer case material High quality A3 steel plate electrostatic spraying
Inner box material Imported high-grade stainless steel SUS304
Insulation material High-density fiberglass wool
viewing window Bulletproof Double Tempered Glass Door
temperature sensor PT100 platinum resistance temperature measurement body
standard configuration Sample rack 1 layer / 2 layers / 3 layers
security protection Over-temperature protection, test space temperature fuse, fan motor overheating, equipment timing
Leakage protection, the overall equipment under phase / reverse phase (only 380V power supply)
Supply Voltage AC220V±10% 50Hz 或AC380V±10% 50Hz
operating environment 5℃~+28℃ ≤85% RH
Note:
1、This technical information, subject to change without notice
2、Can be customized according to the specific requirements of the user non-standard Vacuum Drying Ovens etc
